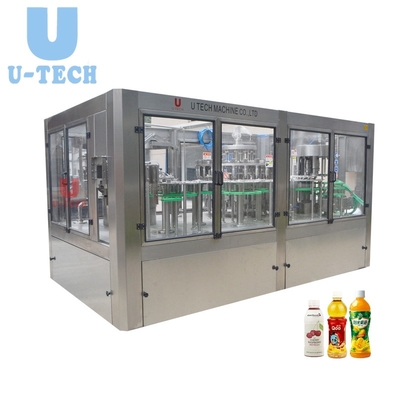

Automatic Food Apple Mango Fruit Juice Filling Machine Factory Production Line

1 Set
MOQ
$24,000.00(1 - 2 Sets) $10,000.00(>=3 Sets)
цена
Automatic Food Apple Mango Fruit Juice Filling Machine Factory Production Line
Характеристики Галерея Характер продукции Спросите цитату
Характеристики
Характеристики
Type: Filling Machine
Applicable Industries: Food & Beverage Factory
Showroom Location: None
Application: Food, Beverage
Packaging Type: Bottles
Packaging Material: Plastic
Automatic Grade: Automatic
Driven Type: Electric
Voltage: 220 V/ 380V
Dimension(L*W*H): 2200*2100*2200
Weight: 5000 KG
Warranty: 2 years
Key Selling Points: Long Service Life
Machinery Capacity: 8000BPH
Filling Material: Juice
Marketing Type: New Product 2020
Machinery Test Report: Provided
Video outgoing-inspection: Provided
Warranty of core components: 2 years
Core Components: PLC
Type:: Filling Machine
Product name:: Juice Filling Machine
Function:: Bottle Washing Filling Capping
Bottle type:: Plastic Screw Caps
Model:: RCGF24-24-6
Usage:: Beverage Packaging
Filling range:: 200-2000ml
Processing Types:: Automatic Bottle Filling Sealing Machine
Key Selling Points:: Easy to Operate
Diameter:: 300ml-2000ml
After Warranty Service: Video technical support, Online support, Spare parts, Field maintenance and repair service
Local Service Location: None
After-sales Service Provided: Online support, Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service
Сертификация: CE ISO
Основная информация
Сертификация: CE ISO
Model Number: RCGF24-24-6
Оплата и доставка Условия
Packaging Details: standard wooden case for juice filing machine
Supply Ability: 15 Set/Sets per Month
Характер продукции
Product Description
Automatic hot juice filling machine, suitable for fruit juice, vegetable juice ,tea drink production line, such as filling material for high temperature to ensure that the material is no change in the filling process, the whole machine adopts the health level of SUS304 stainless steel materials, Japan's mitsubishi PLC control, Taiwan nylon touch screen, is convenient to operate, the advantages of easy to maintain, yield range 1500-25000 bottles/when the whole line compatibility is strong, can adapt to all kinds of bottle shape just change a few parts.

Application:
Tea, juice, functional drink, milk beverage etc.

Applied Containers: Heat-resistant PET bottles with various capacities and shapes.
Filling System: Mechanical valve of flow-meter valve.
Product's Scope: Blowing molding system, air compressor system, filling system, purification system, caps sterilization system, sterile air system, bottle tilting chain and cooling tunnel, filled bottle conveying system, labeling machine, carton/film packing machine, palletizer, electric control, engineering design and construction.
Model
RCGF24-24-6
Capacity
8000BPH
Washing Heads
24
Filling Heads
24
Capping Heads
6
Suitable Bottle
PET Bottle, Plastic Bottle
Diameter of Bottle
55-110 mm
Height of Bottle
150-310 mm
Suitable Cap
Plastic Screw Cap
Weight
5000 kg
Power
2.2 kw
Technical Characters: 1,Full filling is to avoid bottles from sinking after the bottles cooling off, and to decrease dissolved oxygen to the utmost extent. 2,Reasonable structured storage hopper an material supply system keep material in the constant flow speed, constant pressure and without frothing. Usually high position tank is adopted. 3,The storage hopper has the characteristic of gas discharge, full sealing and temperature detecting, in moderate and high speed production line, the material distributor replaces the big liquid tank to realize the complete CIP. 4,Sanitary filling head system is of umbrella structure, high filling speed. 5,Prefect filling temperature control system 6,Return tank system have the function of supplying the material automatically 7,Perfect CIP system.
Detailed Images
Washing Heads
<1>Into bottle way is air conveyor direct connection with Bottle dial . <2>All 304/316 stainless steel rinse heads, water spray style inject design, more save water consumption and more clean . <3>304/316 Stainless steel Gripper with plastic pad, ensure minimal bottle crash during washing <4> 304/316 stainless steel washing pump make the machine more durable
Filling Heads
<1> we adopt the piston filling type to fill the pump seperate with the juice
<2> 304/316 Stainless steel high precision filling nozzle
<3> Filling volume adjustable in fine rank, same liquid level after filling
<4> All 304/316 stainless steel contact parts & liquid tank, fine polish, no death corner, easy to clean
<5> 304/316 stainless steel filling pump
Capping Heads
<1> Place and capping system, electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during capping <2> All 304/316 stainless steel construction <3> No bottle no capping <4> Automatic stop when lack of bottle <5>Capping effect is stable and reliable, Defective rate ≤0.2％ .
Related Products

Beverage Preparation System

<1> The beverage processing system applies to beverage processing for hot filling line and CSD filling line. <2> product’s scope hot water system, sugar dissolving system ( simple syrup system ), concentrate system, blending system (final syrup system), CIP system, extraction system, kind of storage tank / valves / pipe / fittings, UHT system (plate / tubular type), and carbon-cooler / mixer (manual / automatic).

Sugar Melting System

The sugar melting system is composed of crusher, sugar melting/ filter tank, boiling/sedimentation tank, hops adding tank, sheet cooler with oxygenation device and portable CIP system etc. The sugar melting process iscontrolled by PCL program and completed automatically.

High speed emulsification tank

High speed emulsification tank,rotated by the high speed mixer at bottom,speed of mixer is 1440rpm; this equipment is the best one among the similar types in which materials can be mixed well by stirring,extrusion and shearing.

Mixing Tank

Mixing tank introduction of foreign advanced technology,has a unique stirred structure,unique features mixed emulsion.It is a set of mixing,emulsifying,homogenizing,dissolution,crushing and other functions in one device.

Homogenizer

It is widely applied in beverage, food, dairy, pharmaceutical, chemical and process industries.It can be with working platform or without. But suggest with platform, is easy for putting the materials into the tank.
Ultra High Temperature Sterilizer
The system works in aseptic section and normal section, for the technical requirements of filling at low temperature, normal temperature and high temperature. Ultra-high temperature water is used as the media for the heating of materials and temperature adjustment of filling exit,featuring high accuracy.
Water Treatment System
Water treatment system,also called water filtration sterilizer system,is the process of purifying the raw water by a series equipment and devices to be drinkable.This system is to remove the suspended solid,color&smell,bacteria,and microbe,metal hydronium and chemical pollution contained in the raw water.The water purification process affects the quality of the products,as well as the transportation and sale.Thus, in the real operation,it is effective to remain some disinfectant to kill the bacteria infected during the transportation.
Main Parts: -- Raw water tank-- Raw water pump-- Quartz sand filter-- Active carbon filter-- Ion exchanger -- Salty water barrel -- Precision filter-- Water buffer tank-- RO system -- Ozone sterilizer -- Pure water storage tank -- Sterile water storage tank

Automatic PET Bottle Blowing Machine

The PET stretch blow molding machine is the most stable two-step automatic stretch blow moulding machine. It has various cavities and the maximum capacity of the products is 20L.

Bottle Unscrambler

This machine is to make polyester bottles in one line, then discharge them by vacuum conveyor ,its feature are as below: PLC program controlling , digital show speed, automatic high speed operation, easy to combine with all kinds of filler or filling production line

Air Conveyor System

This conveyor is mainly used to convey empty PET bottles form bottle blowing machines or bottle sorting machines to filling machines. The air inside is filtered and make the bottles clean. The conveying speed and efficiency is high and can meet the requirement of high speed filling machines. It has no damage to bottle body.

Dryer

Using high pressure air ventilation, so that high-speed air flow ejected from a slit, the remaining drops of water bottles as much as possible the body blow it away. Inclination of the slit so that the entire side of the bottle can be high-speed air-blown.

Bottle Inverse Sterilizer Machine

It is mainly used in sterilizing pet bottle mouth and inside surface of caps.In which has not been disinfected by hot tea, fruit juice which having been filled in pet bottle.

Colling Machine

This machine can reduce the temperature of cold filling carbonic acid drinks to 36℃-40℃. This machine can eliminate the condensed water on dry. This makes bottles easier for labeling and packaging. 5000-20000 bottles/hour, spray time: about 15-20 minutes.

Laser Printer

Laser marking machines handle nearly every industrial marking and DPM (Direct Part Marking) task. Metals, plastics, ceramics, glass etc. are processed efficiently and contact-free. All desired contents are applied repeatedly accurate and reliably.

Hot Melt Glue Labeling Machine

This hot melt glue plastic bottle label applicator is widely suitable for different material of container and label. The label cost is comparatively lower, it can meet the requirements of those users who have diverse kinds of the containers.
Wrap Around Caser
This machine shapes the cartons automatically and closes their bottoms flaps within hot glue. Electrical Configuration: The configurations such as PLC transducer, position and axle control are all imported. Applicable Types of Bottle: Applicable to production lined of various bottle types, glass bottle, PET bottle, cans etc.
Packing&Shipping
Company Introduction
FAQ
Q1: Do you have any reference project? >>A1:We have reference project in most countries, and you can visit their factories if we get the permission of the customer. Q2: What's your guarantee or the warranty of the quality if we buy your machines? >>A2:We offer you high quality machines with 2 years guarantee. we will give u spare part free in 2 years. Q3: Do you provide customized service? >>A3: We will customize the machine according to your needs, material ,power,filling type,the kinds of the bottles and so on. Q4:When can I get my machine after I paid? >>A4:We will deliver the machines on time as the date we agreed both side. Q5:How can I install my machine when it arrives? >>A5:We will send our engineer to your side as soon as you get all your machines ready , for testing and teaching your technicians how to run the machines.
